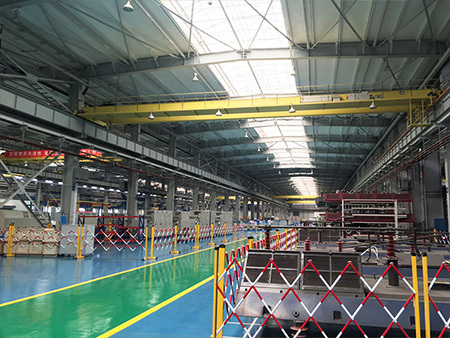

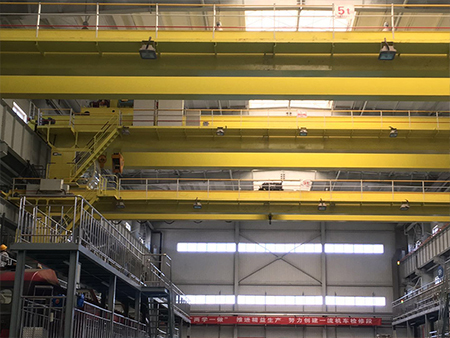

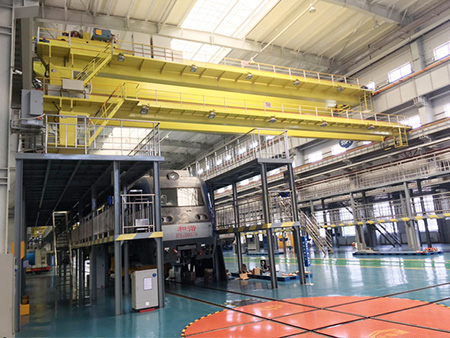

New type electric hook bridge crane

Hook bridge crane is a widely used lifting machine at present, which is mainly composed of box bridge, lifting trolley, crane running mechanism and electrical control system. The picking device is a hook.

A track is laid on the main beam for the trolley to move laterally along the direction of the main beam. The main beam is welded with the box type end beam. Joints are arranged in the middle of the end beam, which are connected by bolts or pin shafts for the bridge to be disassembled for transportation.

The operation mode includes ground handle, wireless remote control and cab. There are two types of cab: open type and closed type. There are adjustable seats in the cab. The bottom plate is laid with insulating mat. The window glass is made of tempered glass. According to the user's requirements, air conditioners, loudspeakers, walkie talkies and other items can be configured.
